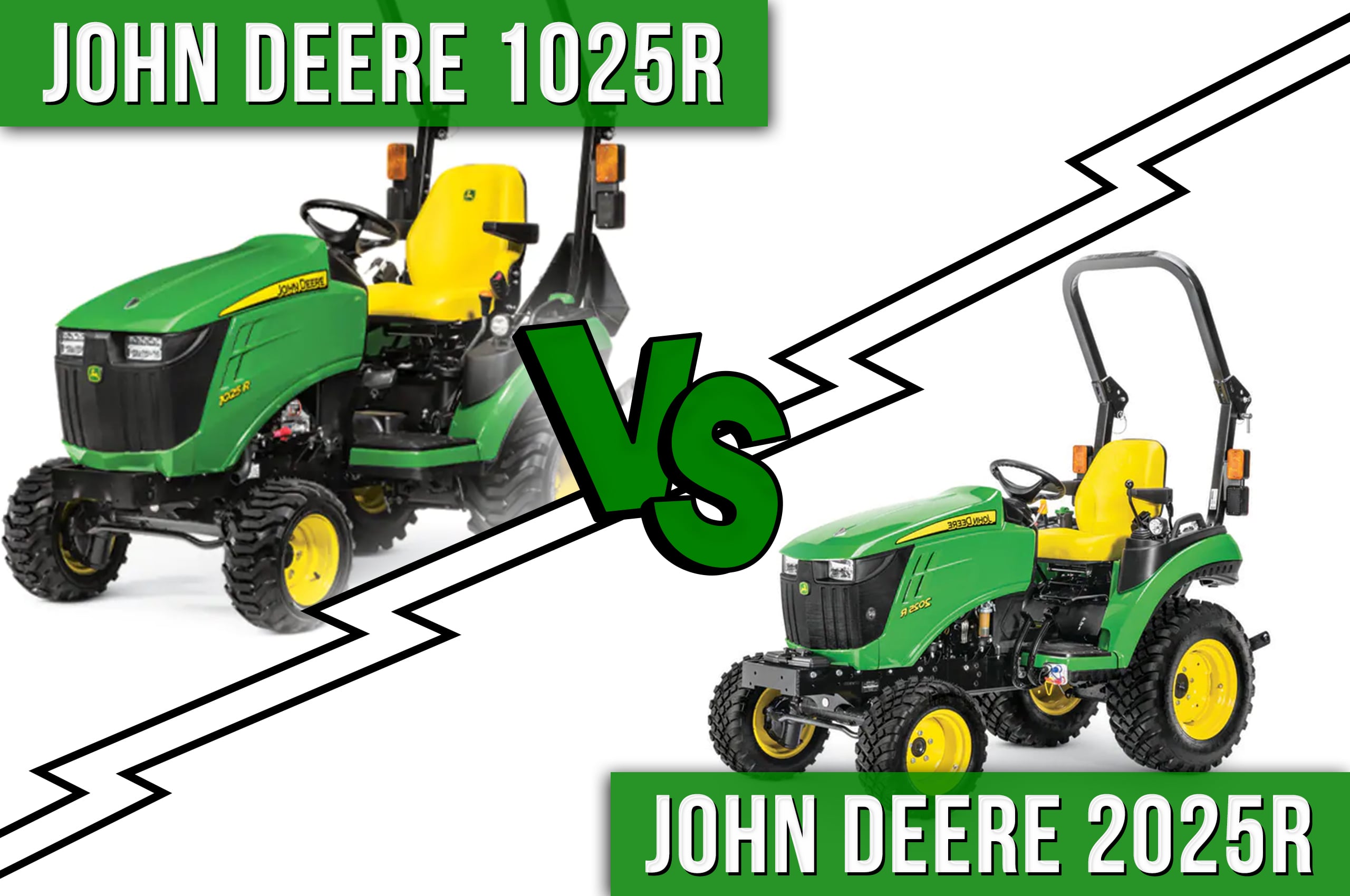

John Deere 1025r vs 2025r: Which one is the best in 2024?

The John Deere 1025r and 2025r are among the most powerful and fuel-efficient tractors available today. Both have a lot in common and a lot that is different.

The engine and horsepower are the same for the Deere 1025r and 2025r. The identical 2-range hydrostatic transmissions are likewise installed in them.

They differ in terms of frame and tire size, though. The H120 rapid park loader on the John Deere 1025r is different from the H130 park loader on the 2025r.

The article covers a quick comparison of the tractors, John Deere 1025r and 2025r, providing a general summary of both devices and a contrast of their similarities and differences.

John Deere 1025r vs 2025r: Quick Overview

Table of Contents

So that you can tell the difference between the two frames, let’s compare the John Deere 1025r sub-compact tractor and the 2025r compact tractor in detail.

High-quality components were used to manufacture both John Deere tractors to ensure their efficiency and durability. They are fitted with 25 HP 3-cylinder diesel engines to provide sufficient power.

Additionally, each of the two machines includes a two-range hydrostatic transmission. It makes it simple for you to utilize and manage them.

The tractors also have several other common characteristics, such as power steering and standard four-wheel drive (4WD).

Driving the family tractors is incredibly maneuverable, thanks to this combination. They are both handy and at ease to utilize as an open operator station.

There are some variances between the mowers in terms of lifting power. Despite the fact that both utilize hydrostatic transmission systems, in 2025r, PSI is substantially greater, increasing the lifting capacity. The front-end loader and three-point hitch of the 2025r let it move heavier objects.

John Deere 2025r can lift around 1023 pounds at its greatest height, whereas the 1025r can lift 836 pounds. The three-point hitch on the 1025r allows it to lift 680 pounds.

2025r, on the other hand, has a remarkable record of lifting 1150 pounds. The two subcontractors’ different tire sizes are the main distinction between them. The discrepancy is mainly caused by the rear tires.

A total of 230 pounds of ballast weight, or approximately 11 gallons, are stored in each tire of the 1025r. Again, the 2025r can carry up to 18 gallons of each tire, or 380 pounds, in total, in ballast.

The 2025r has a bigger frame than the 1025r from a size standpoint. The difference in width between it and the other is around 6 inches along its wheelbase.

The mower’s weight difference between the 2025r and 1025r is due only to this. The 1025r and 2025r both weigh around 1450 and 1800 pounds, respectively.

John Deere 1025r Overview

This machine’s specifications are pretty comparable to those of other subcompact tractors. Real-world variations do exist, though. It is our goal to go into enough depth in this study so that you can examine pertinent real-world data concerning the 1025R tractor.

In 2013, the 1025R was unveiled, with a different engine, yet quite comparable to the 1026r. This one meets the Tier IV emissions standards for engines with less than 25 horsepower.

The 1026R included significant design upgrades such as the auto-connect (drive-over) mower deck, position control on the 3-point hitch, and hinged ROPS, despite only being produced for a short time in the USA.

2305 came before the 1026r, which came before 2210. Even though these devices have shared a lot of similarities over the years, the latter versions’ advancements stand out.

John Deere 2025r Overview

A tiny utility tractor with 4WD in the 2R series is the John Deere 2025R. Between 2013 and 2016, this tractor was produced by John Deere in Augusta, Georgia, and between 2017 and 2020, the second generation.

A 1.3 L, three-cylinder diesel engine and an endless (2-range) number of forward and reverse gears are included in the John Deere 2025R’s equipment.

Yanmar 3TNV80 was the engine used in the John Deere 2025R compact utility tractor. It is a three-cylinder, natural-aspirated, 1.3 L, 1,267 cm2, (77.3 cuin’), diesel engine with an 80.0 mm (3.15 in) cylinder bore and an 84.0 mm (3.31 in) piston stroke.

It has a 23.4:1 compression ratio rating. The highest output power of this engine was 25.3 PS (18.6 kW; 25.0 HP).

The 2025R has power steering, wet disc brakes, an open operator station with two-post ROPS, and a fuel tank capacity of 23.1 liters (6.1 US gal; 5.1 Imp. gal).

John Deere 1025r vs 2025r: The comparison

The advantages and disadvantages of the John Deere 1025R vs. 2025R are often compared by novice tractor purchasers.

Both tractors have a lot to offer, so depending on your demands for your application, either model can be a smart choice.


The 2025R from John Deere is 109.2″ long, with a 63″ wheelbase supporting all 1,660 pounds of its base weight.

With the left-side split pedals, the vehicle has a 12.5″ ground clearance and a 6.7″ turning circle with the brakes on.

The 1025r (and 1023e) seem somewhat more significant, both in width and height, than other subcompact tractors, despite sharing the 26x12x12 rear tires and being just long enough to hold a 60-inch mid-mount mower—the wheelbase of 57 inches.

The back tires are around 47 inches broad. Weight differences among subcompacts. 1444 lb are in the base 1025r (no loader, mower, etc.).

For purposes like lawn mowing, this size tractor is widely employed. Thus, we believed that the “uncut circle diameter” would be the most appropriate technique to calculate the turning radius. In a circle, mow while operating the tractor.


The 2025r engine has a dry-type air cleaner, forced lubrication with a trochoid pump, liquid cooling with a radiator, and an in-line fuel injection pump. Maximum speeds are 12.3 mph (19.8 km/h) going forward and 11.4 mph (18.2 km/h) going backward.

The 1.3L 3-cylinder diesel Yanmar of the 1025r. It’s conceivable that our testing wasn’t entirely accurate because a dyno test revealed a 1-hp difference in PTO horsepower. Both of these figures were significantly higher than expected. The 1960s dyno is still in use!

A twin air filter element is used by the 1025r (inner and outer). For this test, 1.125 gallons of fuel were utilized by the 1025r.


Pricing correctly is challenging. In fact, I’d argue it’s impossible to do. Every dealer is distinctive. The nation’s many areas are unique. Seasonal variations in the competitive environment also affect prices and incentives.

John Deere 1025r vs. 2025r: Which is the best?

The 1025r and 2025r have more characteristics in common than differences when these two lawnmowers are compared.

Well, much of it relies on how you want to first use the tractors. Due to its modest weight, the 1025r would be a fantastic option if you wanted the sub-compact tractor to first cut the lawn. In comparison to the series 2 compact tractor, it mows with superior quality.

The 2025r, on the other hand, is definitely the best option if you frequently mow the lawn and need the front loader and three-point operation.

The tractor also has superior stability and traction because of its larger tire size and increased weight. Therefore, the 2025r should be the one if you’re thinking about doing frequent groundwork, especially on a slope.

Additionally, pay close attention to the safety instructions. If properly maintained, both mowers, which are made of high-quality materials, should last a very long time.
